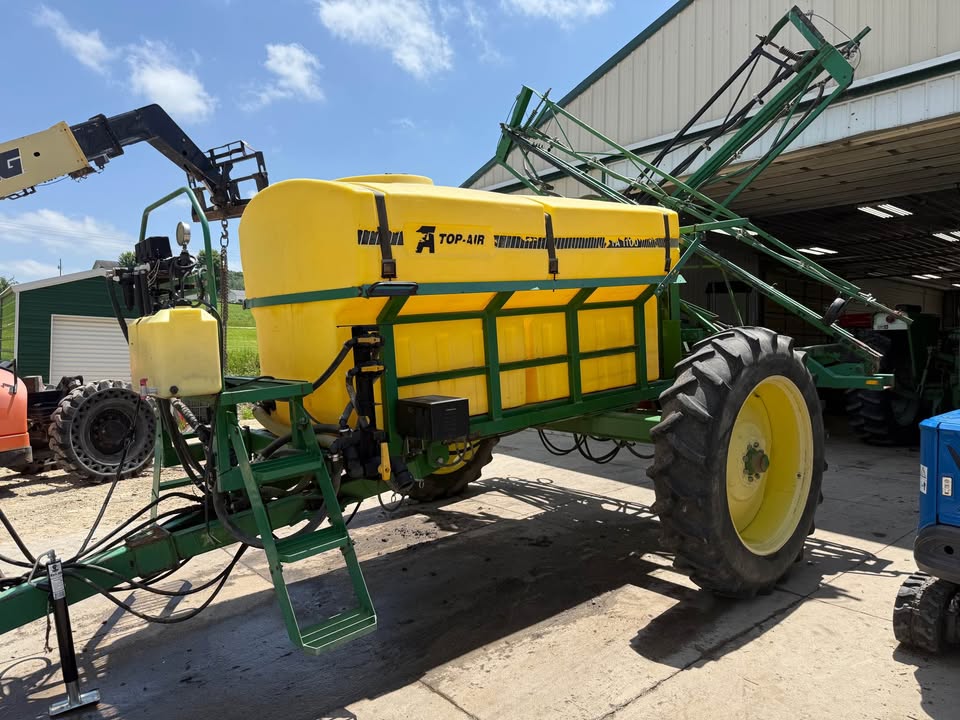

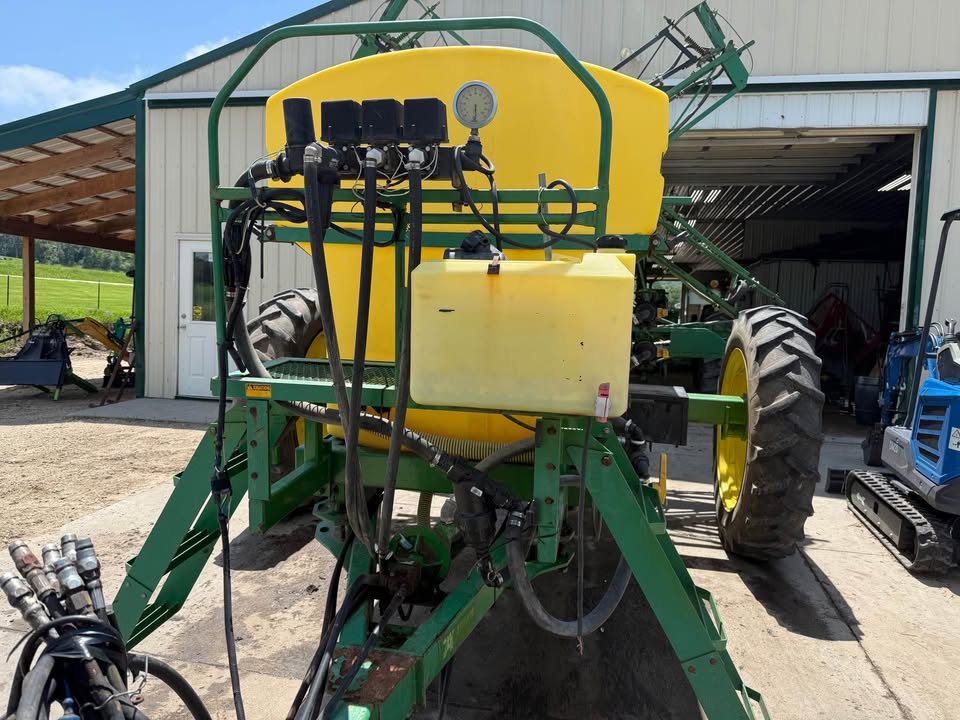

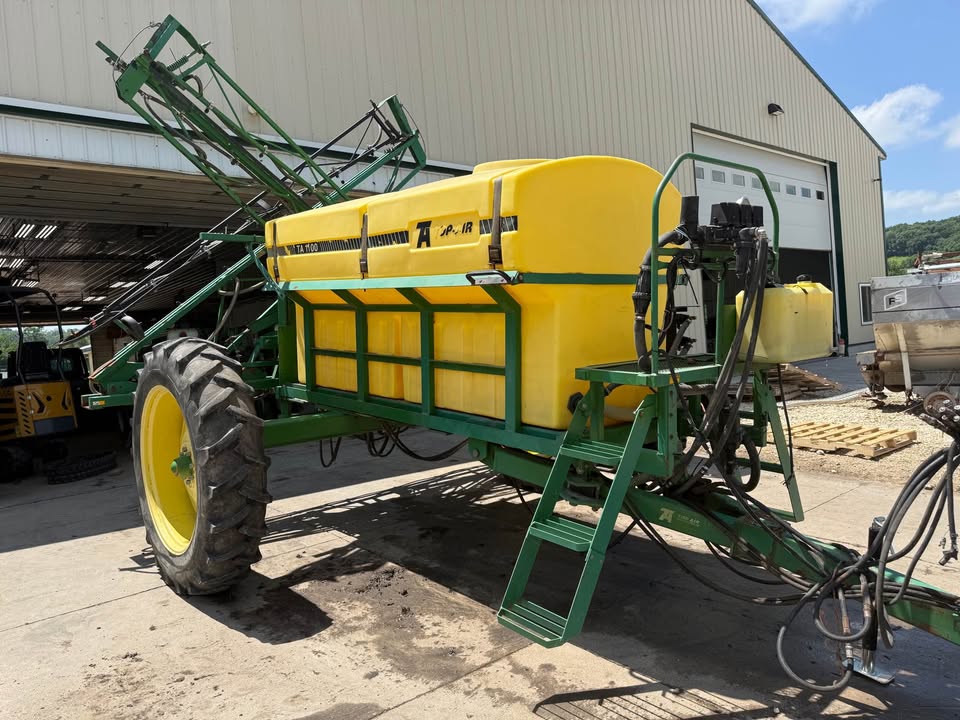

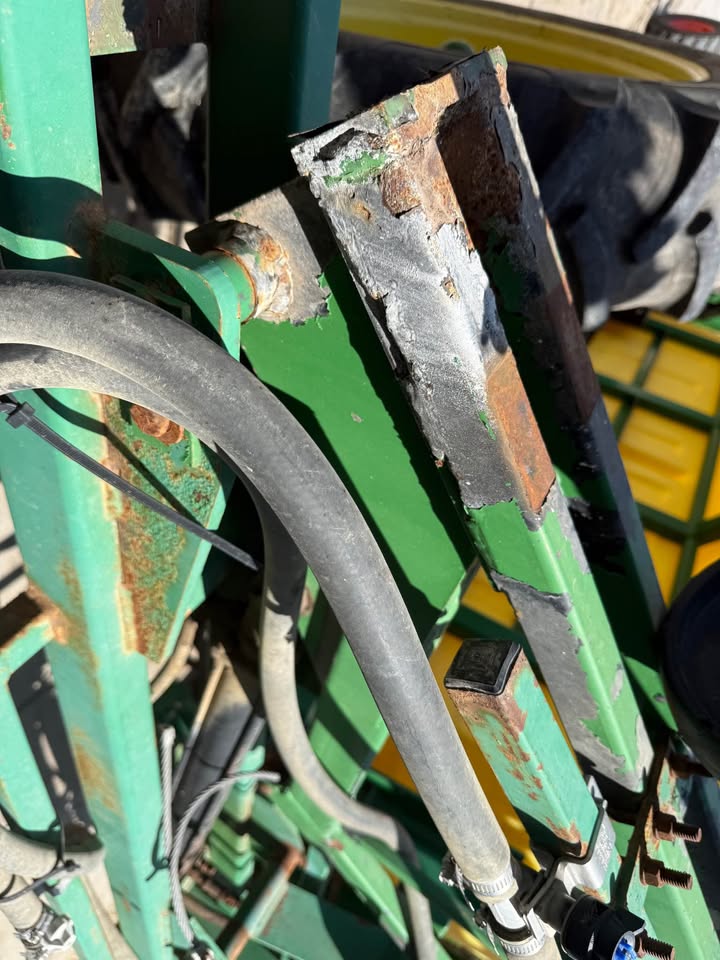

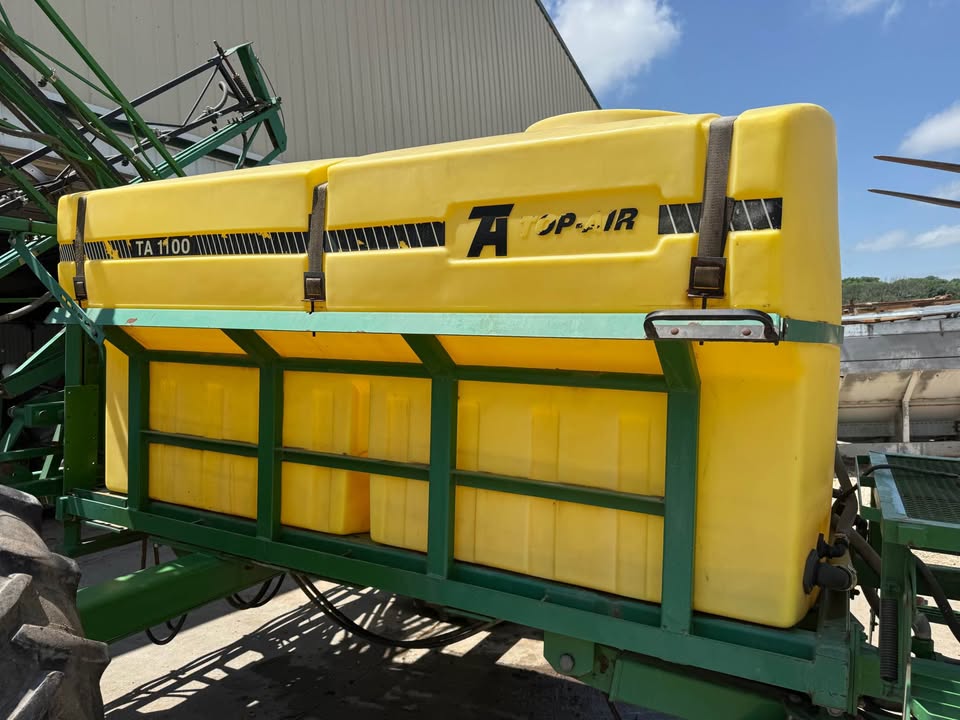

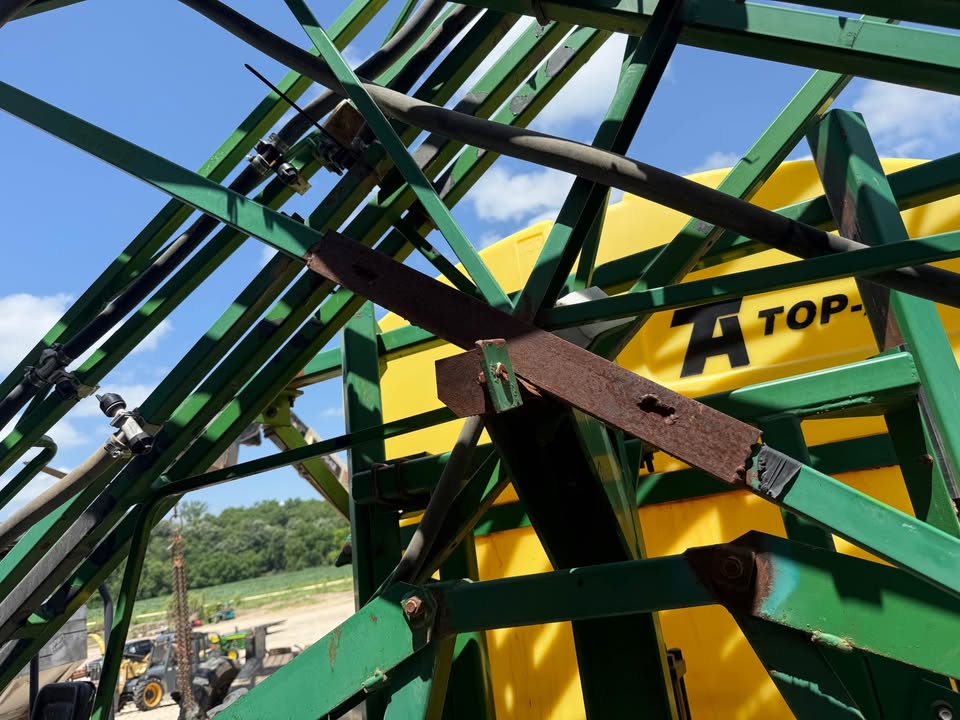

Top Air TA 1100 Sprayer. 1100 gallon capacity. 60ft Boom. Good looking tank. W/ hydraulic pump and controller. Local farmer trade in. Used last season. Has 2 welds on boom as seen in pics.
The Top Air TA1000 is a pull-type field sprayer designed for row crop, hay, and specialty crop applications. Depending on the year and options, it was available with multiple boom widths, Raven rate controllers, foam markers, and hydraulic boom functions.
Tank & Capacity
| Specification | Top Air TA1000 |
|---|---|
| Main Tank Capacity | 1,000 gallons |
| Rinse Tank | Optional (varies by model year) |
| Chemical Inductor | Optional |
| Tank Material | Polyethylene |
Boom Options

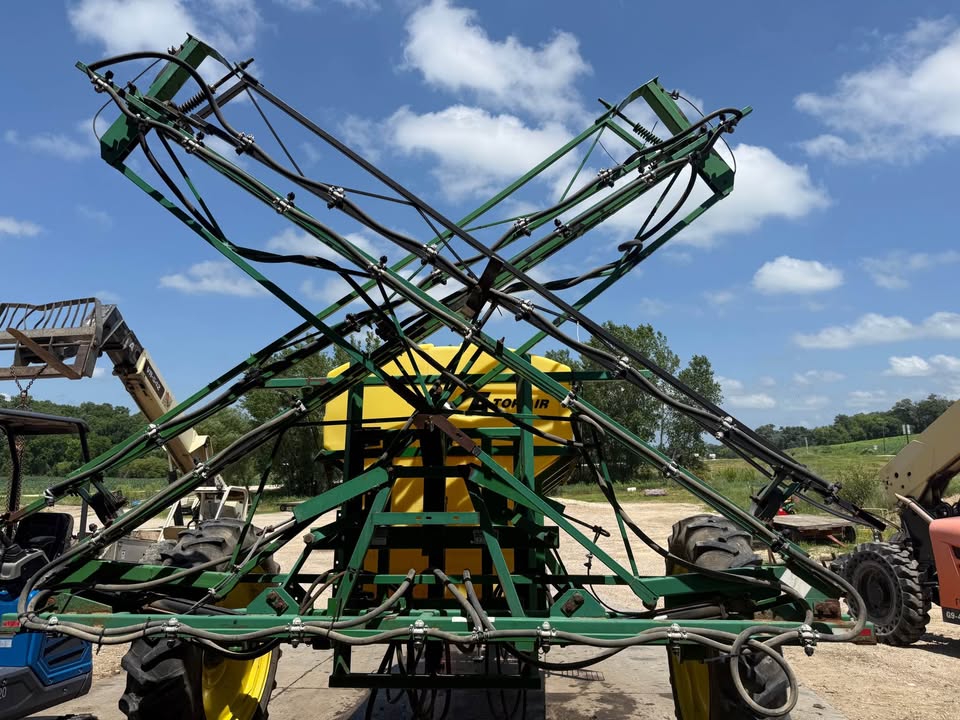

- 60-foot hydraulic cross-fold boom
- Available with 20-inch nozzle spacing
- 3-section boom control (common configuration)
- Hydraulic boom fold and lift
- Floating boom suspension (varies by year)
Pump & Plumbing

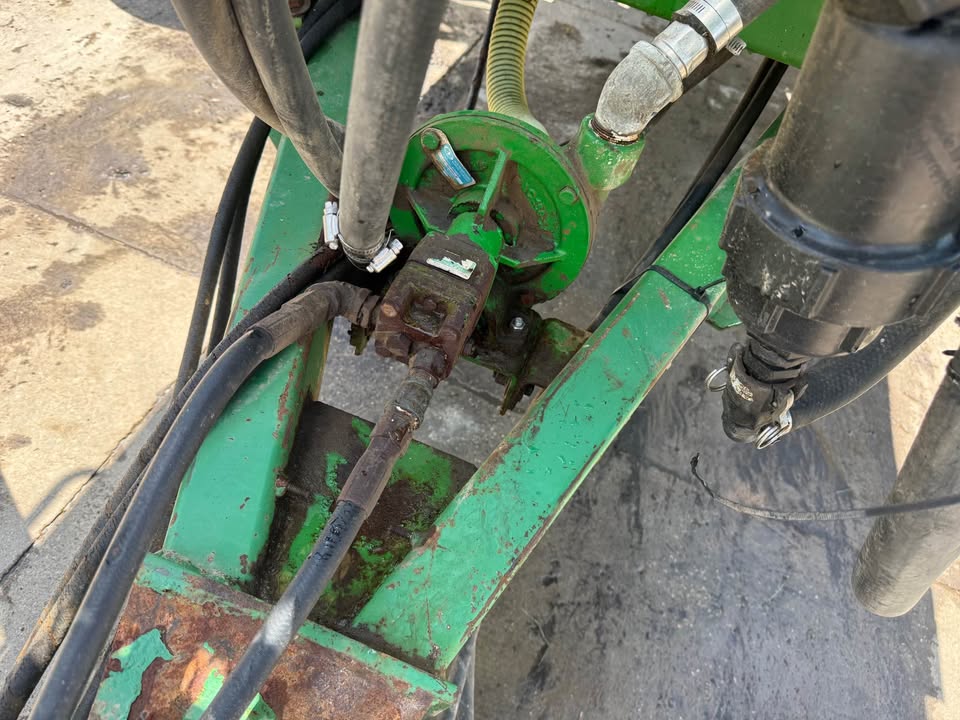

- Hydraulic-driven centrifugal pump (commonly an ACE hydraulic pump)
- Stainless steel boom plumbing on many models

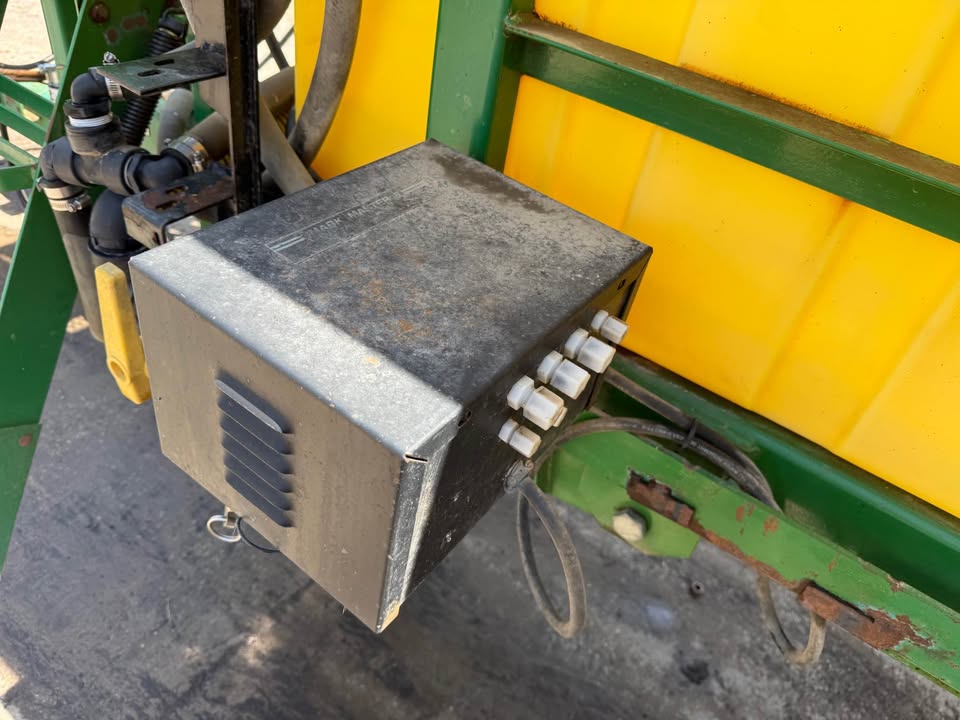

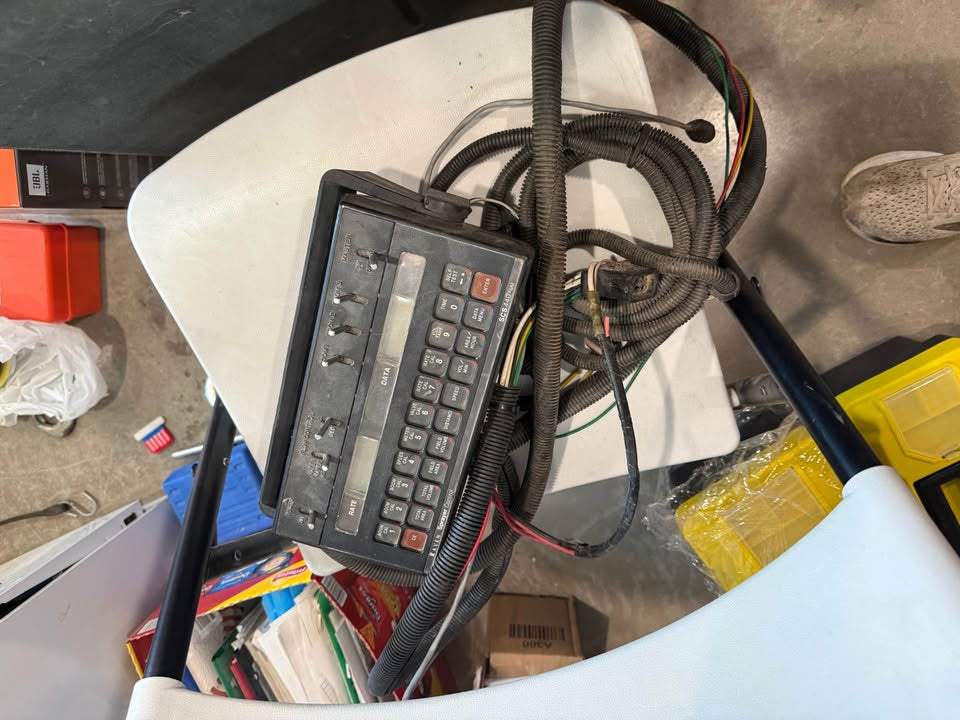

- Raven rate controller compatibility
- Foam marker option
- Bottom-fill plumbing available on many units
- Triple-nozzle bodies available on some configurations
Running Gear
| Specification | Value |
|---|---|
| Tires | 18.4 × 26 (common setup) |
| Hitch | Heavy-duty drawbar |
| Axle | Adjustable axle (varies by year) |
| Suspension | Heavy-duty walking beam/rigid axle depending on model |
Features
- ✅ 1,000-gallon poly tank
- ✅ 60-foot hydraulic folding boom
- ✅ 20-inch nozzle spacing
- ✅ Hydraulic-driven pump
- ✅ Raven controller compatible
- ✅ Foam marker ready or equipped (varies)
- ✅ Bottom-fill plumbing
- ✅ Heavy-duty pull-type chassis
- ✅ Designed for row crop, pasture, and hay applications
Typical Tractor Requirements
- Minimum Tractor Horsepower: 80–100 HP
- Hydraulic remote outlets required for:
- Boom fold
- Boom lift
- Pump operation (hydraulic pump models)
Quick Specs
| Item | Specification |
|---|---|
| Tank Capacity | 1,000 gal |
| Boom Width | 60 ft |
| Nozzle Spacing | 20 in. |
| Boom Control | 3 Sections |
| Pump | Hydraulic Centrifugal |
| Tires | 18.4 × 26 |
| Fill System | Bottom Fill |
| Controller | Raven Compatible |
The Top Air TA1000 is a dependable pull-type sprayer well suited for medium-sized farming operations. Its 1,000-gallon tank, 60-foot hydraulic boom, and Raven-compatible rate control system make it an effective choice for spraying row crops, hay fields, and pastures while keeping operating costs lower than a self-propelled sprayer.
