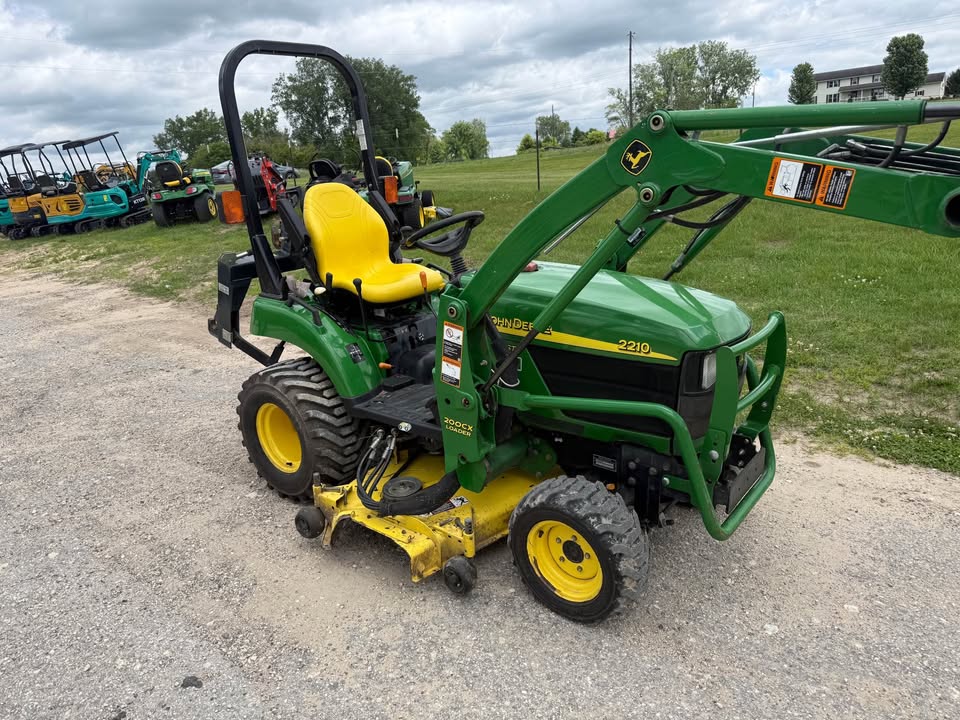

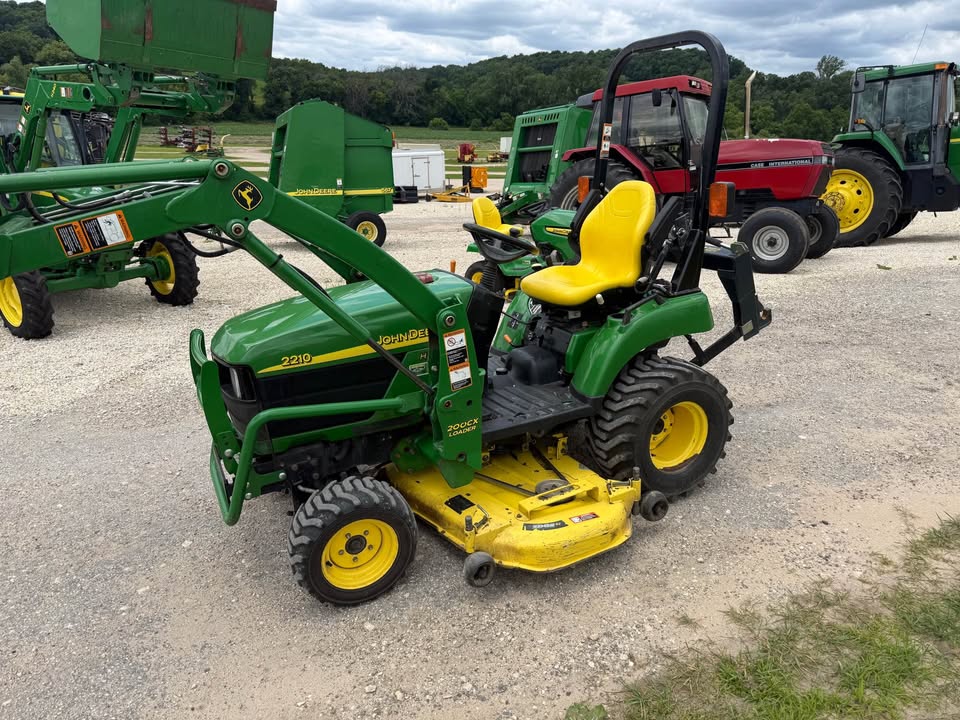

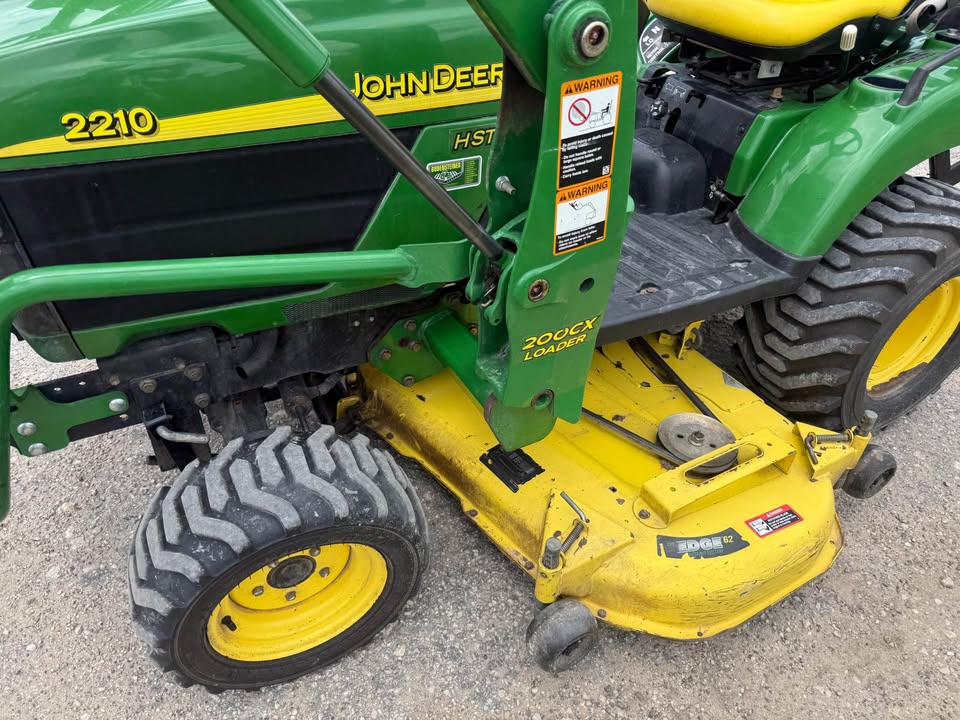

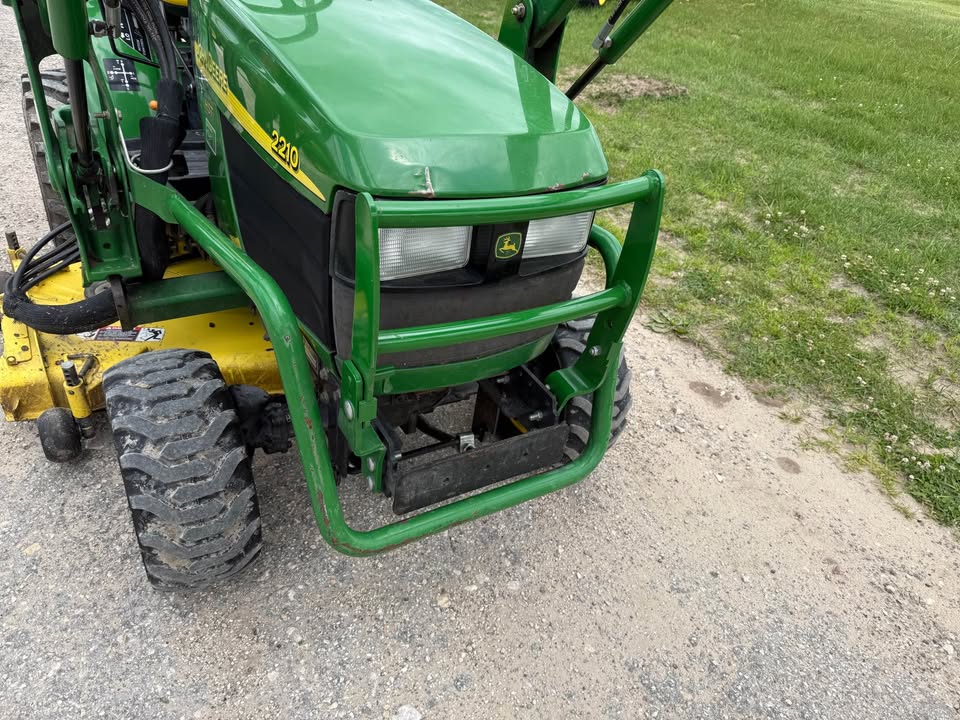

2004 John Deere 2210 with 200CX loader

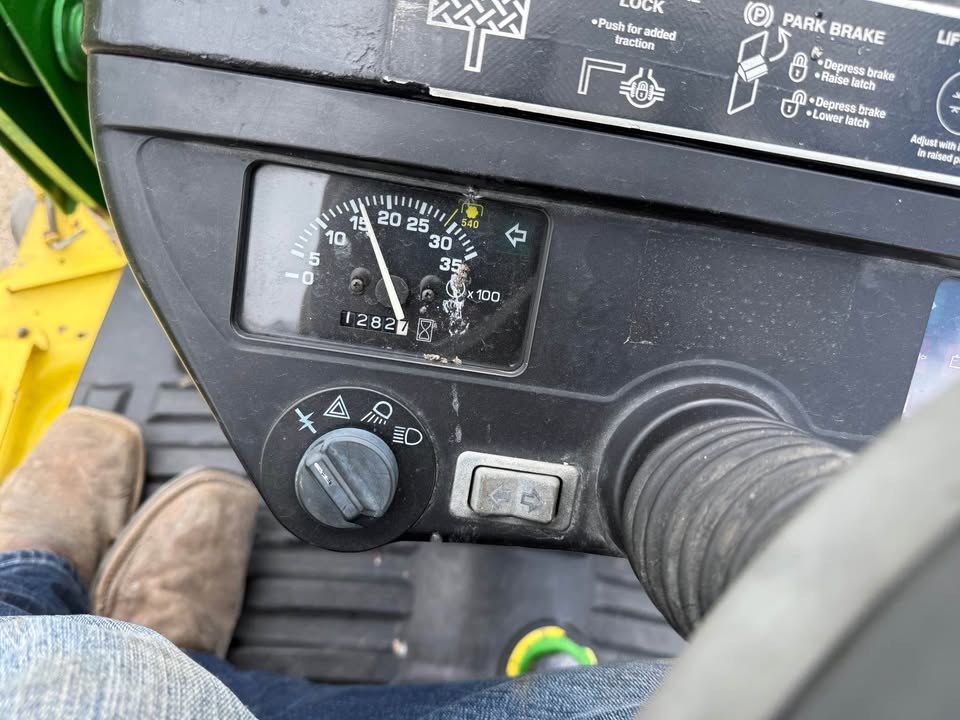

2004 John Deere 2210 Compact Tractor W/ 200CX loader, quick hitch, and 62” deck. Runs, Drives, and mows great!! 1282 hours.

Engine

• Engine: Yanmar 3-cylinder diesel
• Displacement: 1.0 L (61 cu. in.)
• Gross Engine Power: 23 HP
• PTO Power:
  • 17.7 HP (hydrostatic transmission)
• Fuel Tank Capacity: 5.5 gallons
• Cooling System: Liquid cooled
• Rated Engine Speed: 2,600 RPM

Transmission & Drivetrain

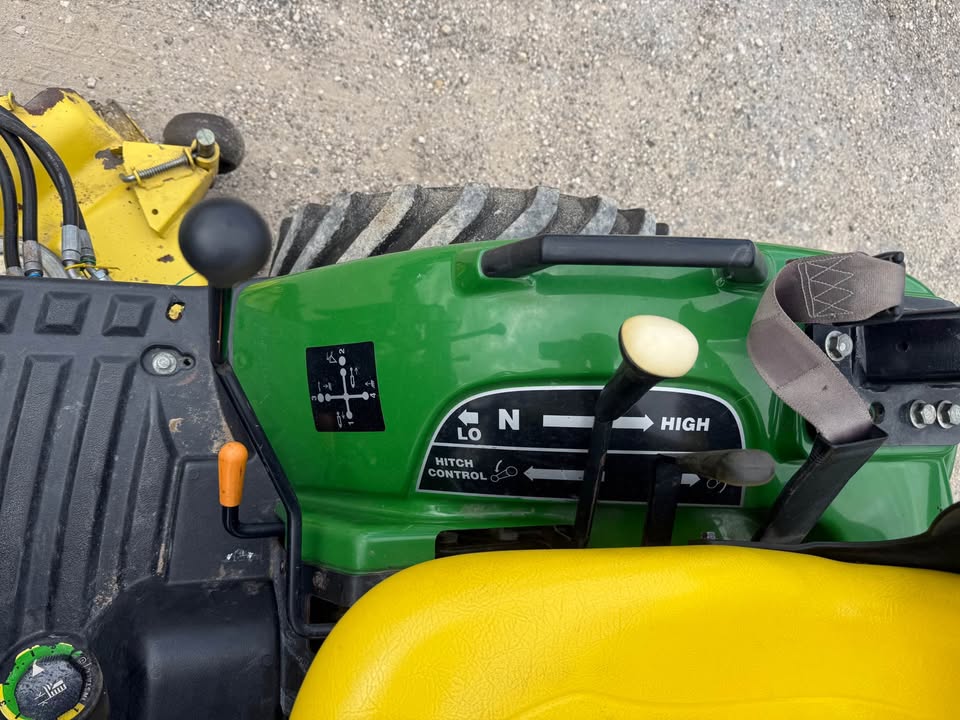

• Transmission: Hydrostatic (2-range)
• Drive: MFWD (4WD)
• Steering: Power steering
• Top Speed: Approximately 8.5 mph (13.7 km/h)
• Rear PTO: Independent, 540 RPM
• Mid PTO: Independent, 2,100 RPM

Dimensions

• Wheelbase: 57 in.
• Overall Length: 104 in.
• Width: 47.9 in.
• Height (ROPS): 78.6 in.
• Ground Clearance: 7.7 in.
• Operating Weight: Approximately 1,400 lbs (635 kg) without attachments

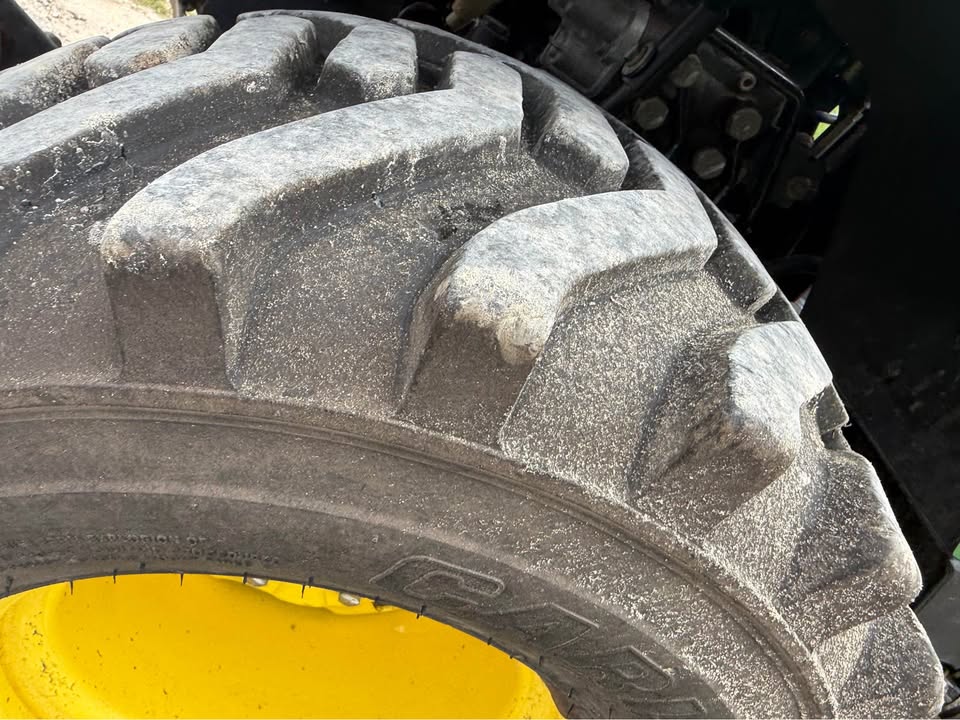

Tires

• Front Tires: 18x8.50-10
• Rear Tires: 26x12.00-12
• Available in turf, industrial, and agricultural tire options.

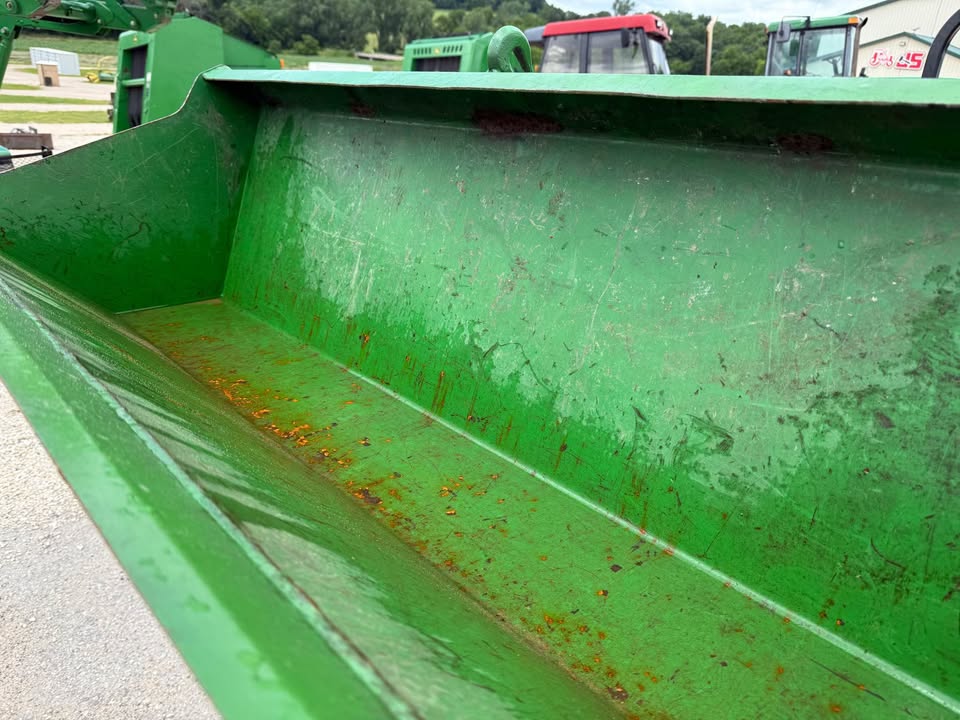

Loader Specifications (210/200CX Series)

The 200CX loader offers similar performance to the earlier 210 loader commonly found on the 2210. Loader capacities are approximately:

• Maximum Lift Height: 62 in.
• Lift Capacity at Pivot Pin: 622 lbs
• Lift Capacity to Full Height: 437 lbs
• Maximum Dump Angle: 47.2°
• Digging Depth: 7.9 in.
• Reach at Maximum Height: 24.2 in.
• Overall Loader Length: 107.2 in.

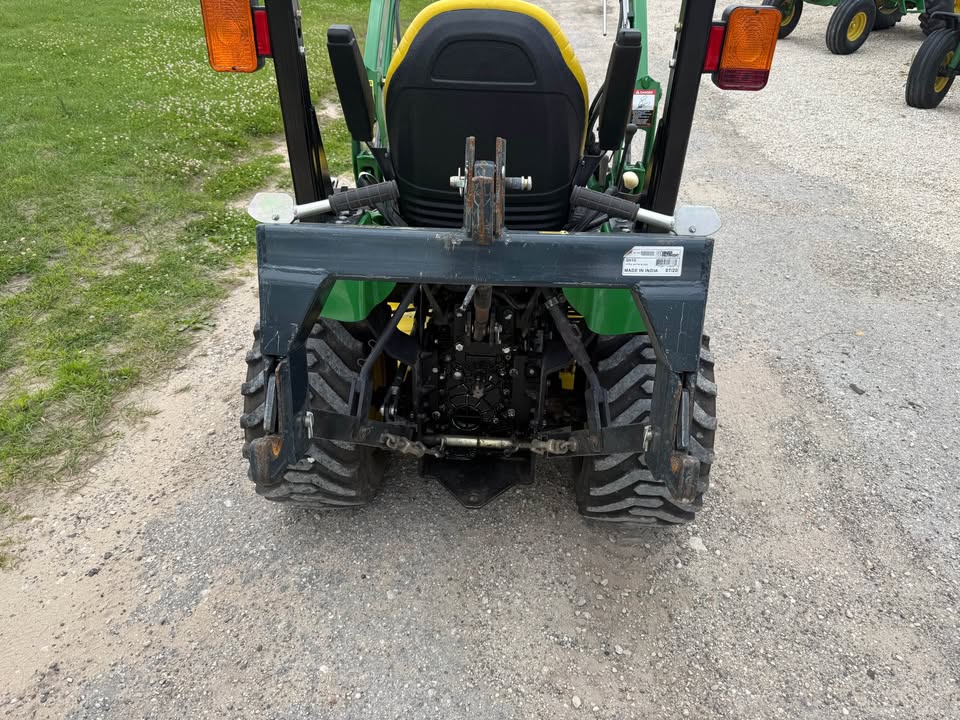

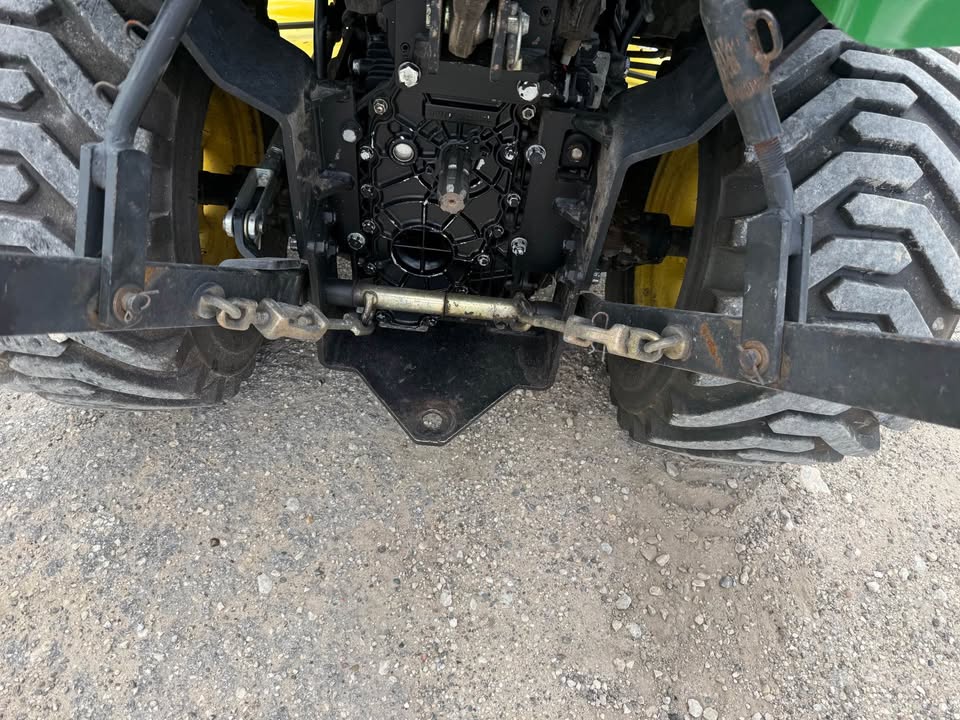

3-Point Hitch

• Category: Limited Category 1
• Lift Capacity: Approximately 650 lbs at lift points
• Hydraulic System Capacity: 3.4 gallons of Hy-Gard oil

Common Uses

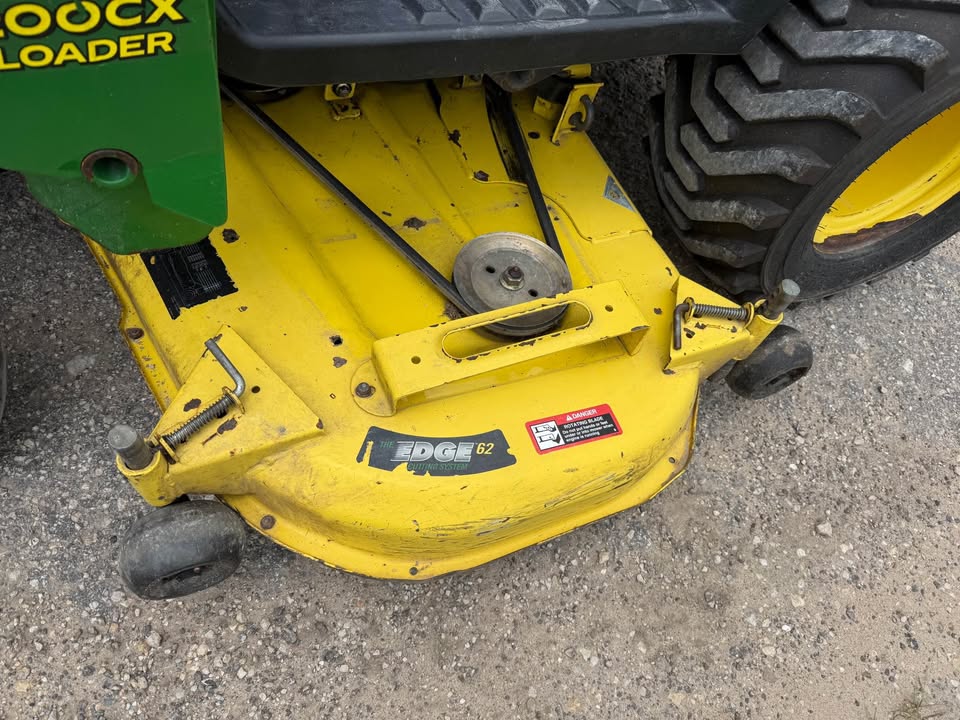

• Mowing with a 62-inch mid-mount deck
• Snow removal
• Loader work (mulch, gravel, manure)
• Landscaping and light farming
• Pulling small implements and trailers
