2026 Industrias America 140R Grader Blade
2026 Industrias America 140R Grader Blade
2026 Industrias America 140R Grader Blade Specs

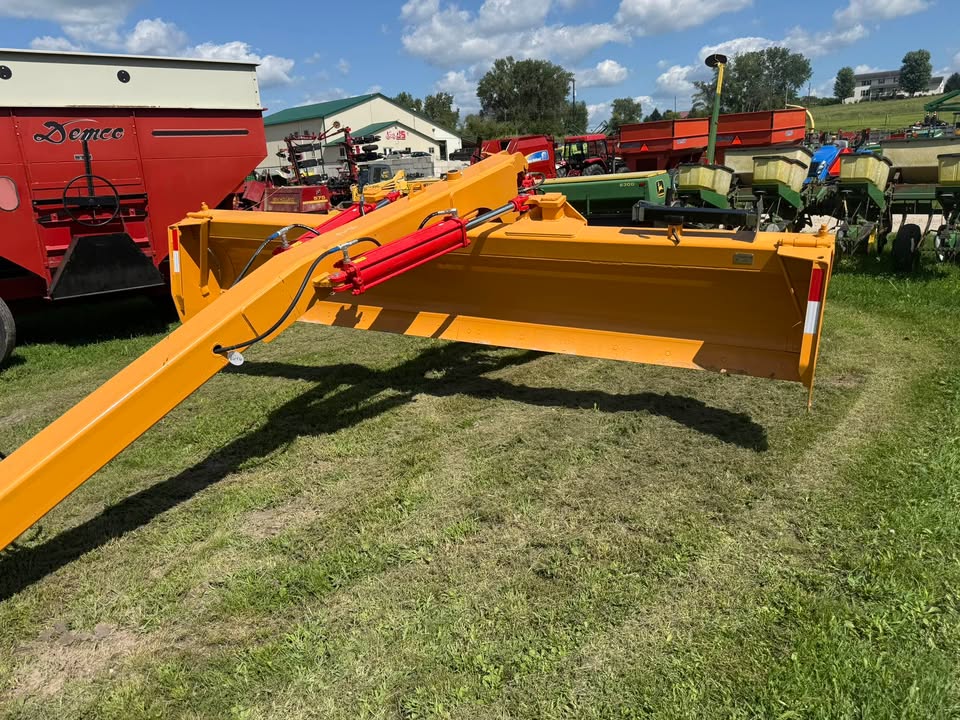

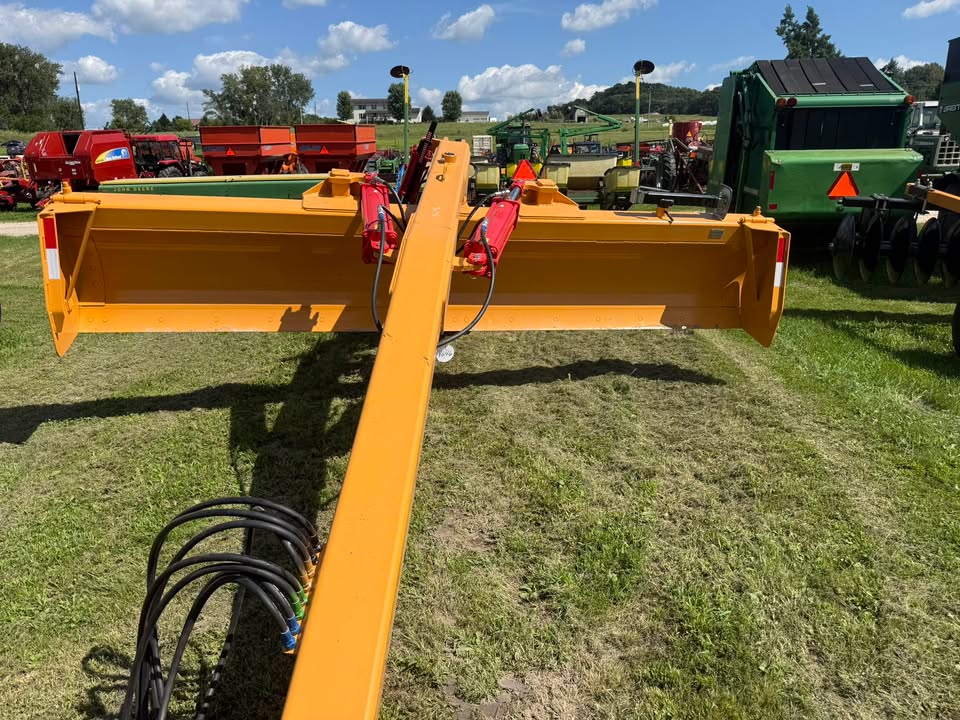

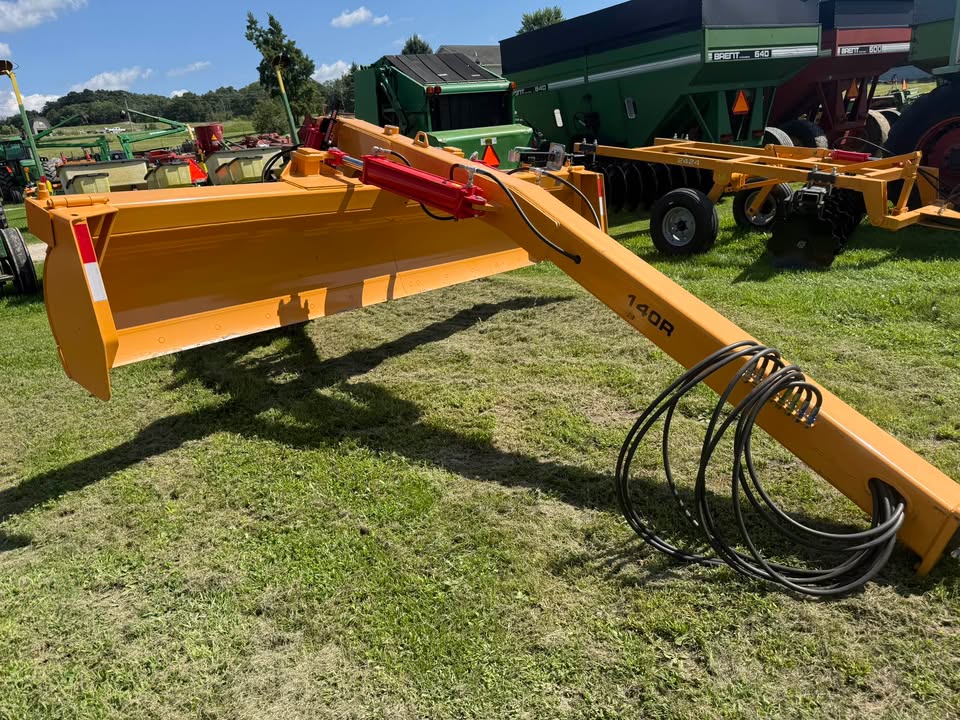

The 2026 Industrias America 140R is a heavy-duty 14-foot pull-type grader blade featuring 6-way hydraulic blade control, rear steering axle, and hinged end caps. Current 2026 listings confirm it comes fully equipped with the hydraulic cylinders and hoses.
| Specification | Details |
|---|---|
| Model | 140R |
| Blade Width | 14 ft. |
| Blade Control | 6-Way Hydraulic |
| Maximum Blade Angle | 45° |
| Moldboard Height | 30 in. |
| Main Frame | 8" × 8" × 3/8" tubing |
| Moldboard Top Tubing | 8" × 6" |
| Back Plate | 5/16 in. |

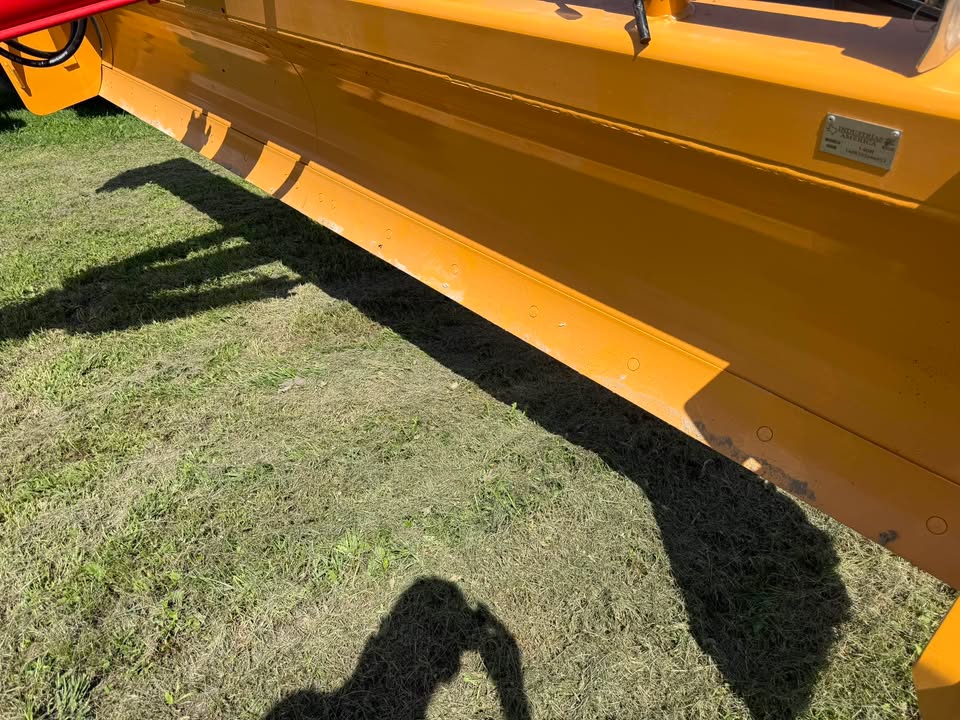

| Cutting Edge | 6" × 1/2" Reversible |
| Weight | Approx. 4,500 lbs. |
| Tires | 14L-16.1, 12-Ply |

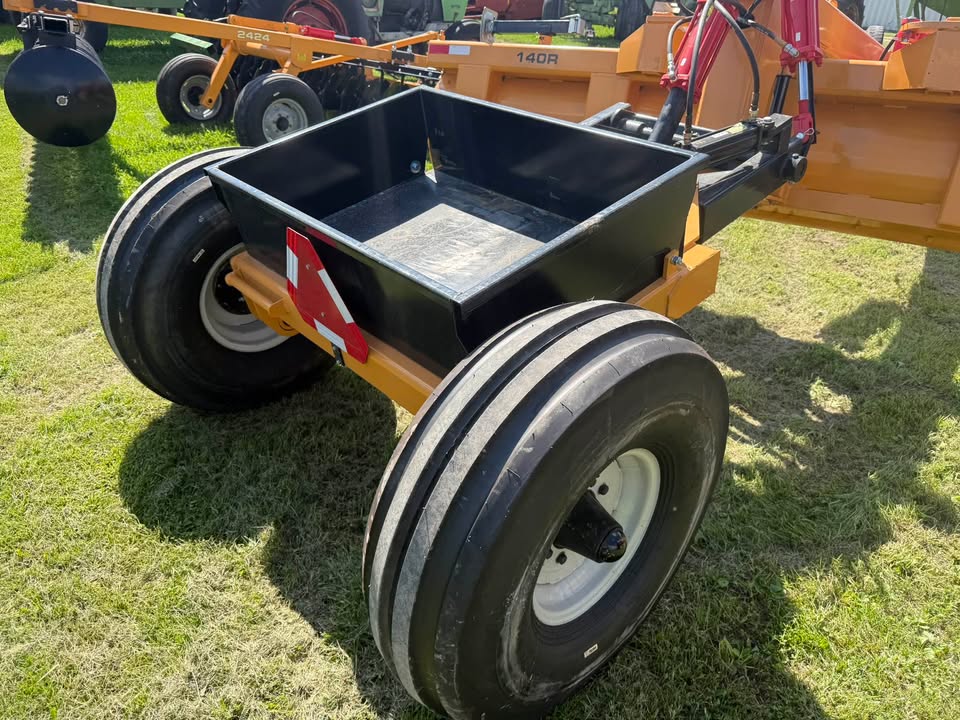

| Weight Box | 44" × 31" |

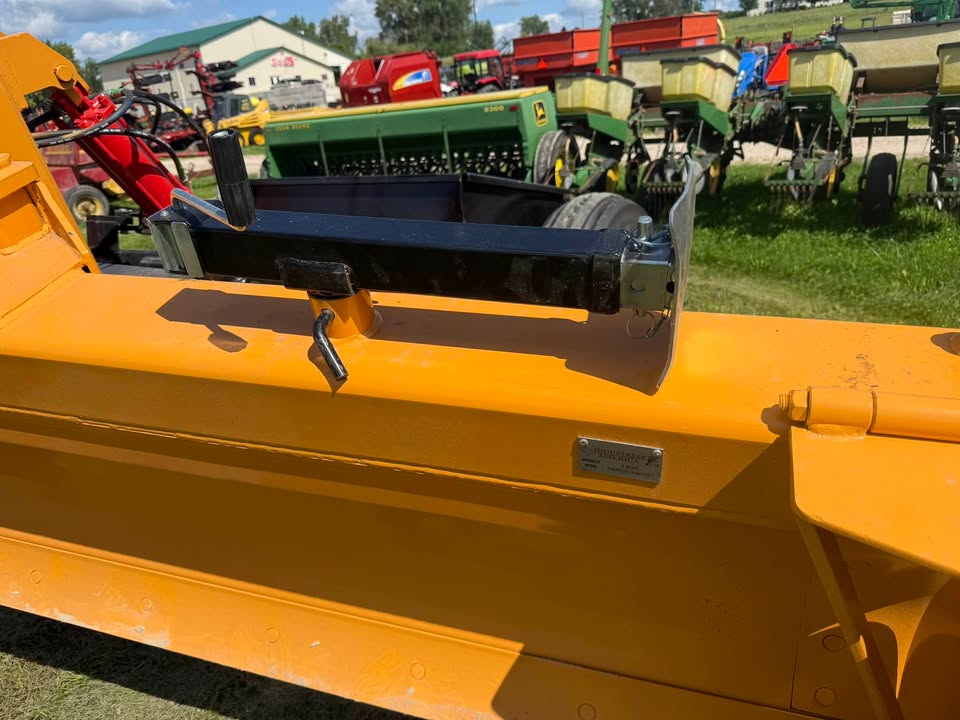

| End Caps | Hinged |
| Rear Axle | Hydraulic Steering |
The heavy 8" × 8" main frame, reversible cutting edge, 4,500-lb approximate weight, and 12-ply tires are documented for the 140R.
Hydraulic System

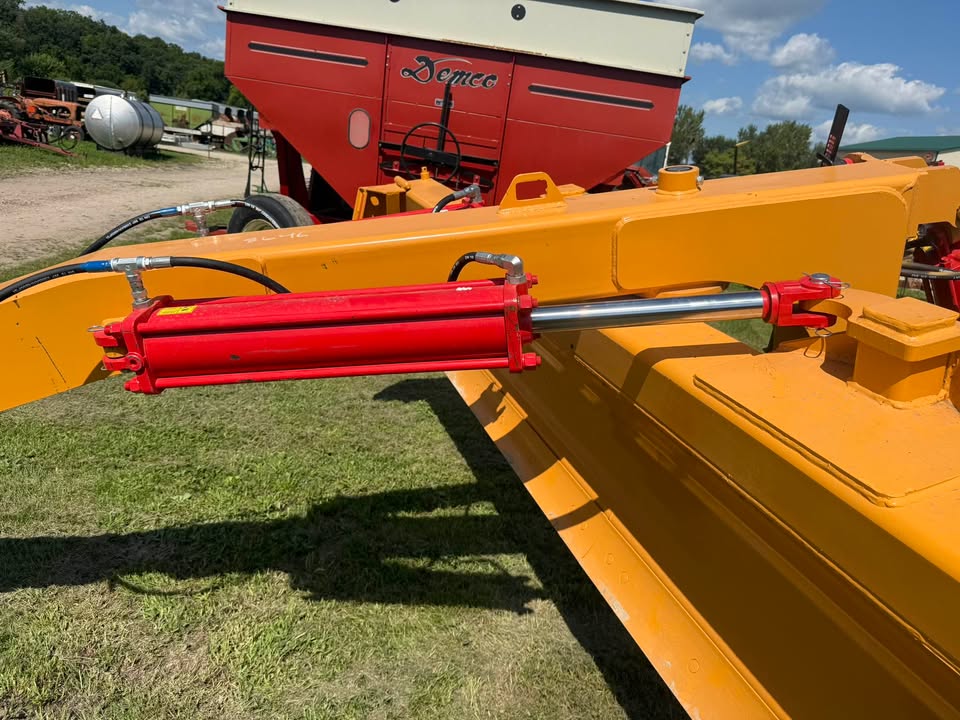

- Angle Cylinders: 5" × 24" × 2"
- Lift Cylinder: 4" × 10" × 2"
- Tilt Cylinder: 4" × 8"

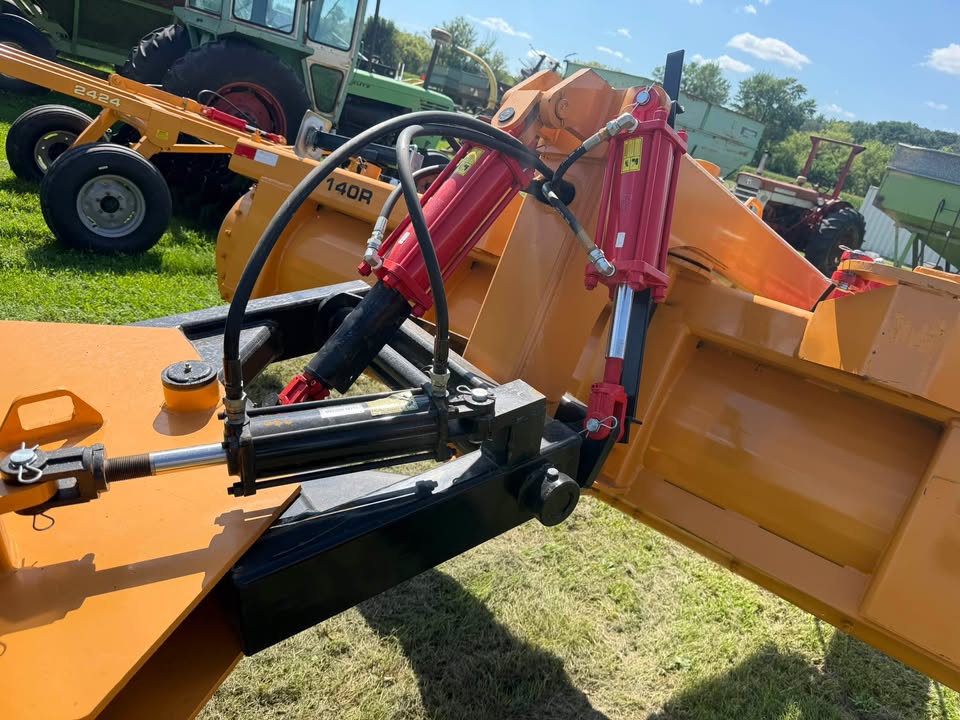

- Rear Steering Cylinder: 3" × 8"
- Hydraulic blade angle
- Hydraulic lift
- Hydraulic tilt
- Hydraulic rear steering

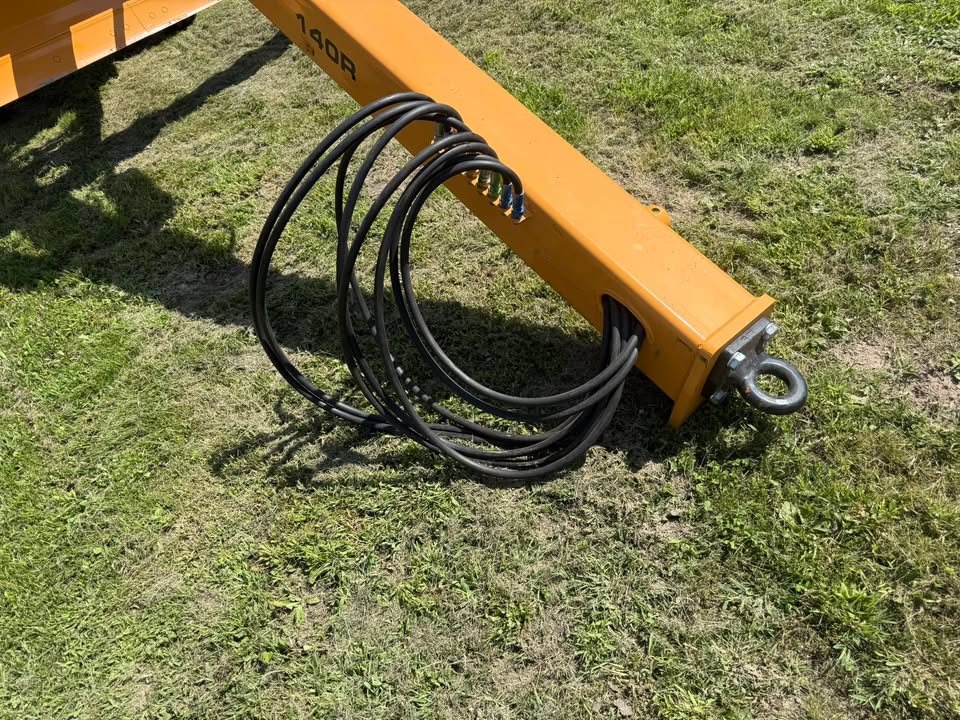

- Cylinders and hoses included
Features
- 14-foot cutting width
- 6-way hydraulic blade adjustment
- 45° blade angle
- Hydraulic rear steering axle
- Hinged end caps
- Heavy-duty 8" × 8" frame
- 30" tall moldboard
- Reversible 6" × 1/2" cutting edge
- 44" × 31" weight box
- Heavy-duty 12-ply tires
- Pull-type design
- Fully equipped with cylinders and hydraulic hoses
Great For
Gravel Roads • Driveways • Farm Lanes • Ditching • Crown Building • Land Leveling • Waterways • Construction Sites • Commercial Grading • Farm Maintenance
Quick Specs
14' Blade • 6-Way Hydraulic • 45° Angle • Approx. 4,500 lbs. • 30" Moldboard • 8" × 8" Main Frame • Reversible 6" × 1/2" Cutting Edge • Hydraulic Rear Steering • Hinged End Caps • 14L-16.1 12-Ply Tires
The 140R is a significant step up from the 120R, with a wider 14-foot blade, heavier 8" × 8" frame, and hydraulic rear steering for better control during grading.
