2024 Polaris Ranger 1000 XP Ultimate Crew
2024 Polaris Ranger 1000 XP Ultimate Crew

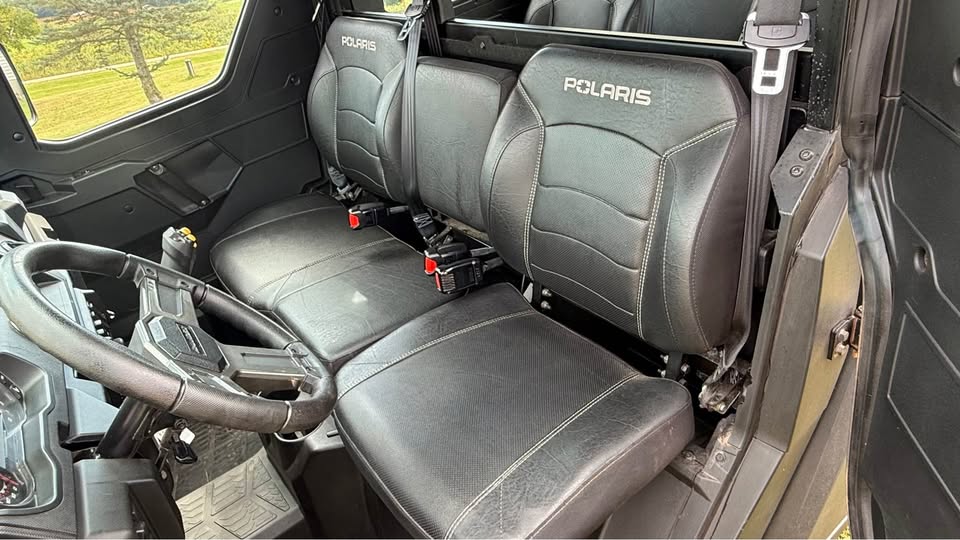

024 Polaris Ranger 1000 XP Crew Ultimate UTV. Very nice machine!! Has cab, air, heat, ride command w/ radio, map, and more!! Loaded with options!! Plow ready! (No plow included) Only flaw is can’t figure out backup camera. Other than that everything else works great on it! Runs and drives good. Only 5597 miles/ 357 hours. W/ title. 24,499 plus sales tax unless exempt.
2024 Polaris Ranger Crew XP 1000 NorthStar Ultimate Specs
The 2024 Polaris Ranger Crew XP 1000 NorthStar Edition Ultimate is the fully enclosed, climate-controlled Crew model, powered by Polaris' 999cc ProStar twin-cylinder engine producing 82 HP.
Engine & Drivetrain
| Specification | Details |
|---|---|
| Engine | 999cc ProStar DOHC Twin |
| Horsepower | 82 HP |
| Cooling | Liquid |
| Fuel System | Electronic Fuel Injection |
| Transmission | Automatic PVT H/L/N/R/P |
| Drive | True On-Demand AWD / 2WD / VersaTrac Turf Mode |
| Final Drive | Shaft |
| Power Steering | Electronic Power Steering (EPS) |
Dimensions & Capacities
| Specification | Details |
|---|---|
| Seating | 6 Passengers |
| Overall Length | 152 in. |
| Overall Width | 65 in. |
| Overall Height | 79.5 in. |
| Wheelbase | 113 in. |
| Ground Clearance | 14 in. |
| Dry Weight | 2,387 lbs. |
| Fuel Capacity | 11.5 gal. |
| Payload Capacity | 1,150 lbs. |
| Cargo Box Capacity | 1,000 lbs. |
| Towing Capacity | 2,500 lbs. |
| Hitch | 2" Receiver |
The cargo box measures 36.75" × 54.25" × 12.5".
Suspension & Tires
The Ultimate uses independent dual A-arm suspension with 10 inches of travel front and rear, along with larger 29-inch Pro Armor X-Terrain tires.
- Front Tires: 29 × 9-14
- Rear Tires: 29 × 11-14
- Four-wheel hydraulic disc brakes
- Dual-bore front brake calipers
- 14" ground clearance NorthStar Ultimate Features
The NorthStar Ultimate package is what makes this Ranger especially desirable. It features a factory-installed enclosed cab with heating and air conditioning, full doors, glass windshield and premium cab equipment.
It also includes 82 HP, EPS, LED lighting, 29" tires, 14" ground clearance, a 1,000-lb cargo box and 2,500-lb towing capacity.
Quick Specs
999cc • 82 HP • 6 Passenger • Heat & A/C • Fully Enclosed Cab • AWD/2WD/Turf Mode • EPS • 29" Tires • 14" Ground Clearance • 1,000-lb Bed Capacity • 2,500-lb Towing • 11.5-Gallon Fuel Tank
This is the NorthStar Edition Ultimate Crew, so the specs differ from the standard 2024 Ranger Crew XP 1000 Premium—particularly the cab, weight, tires and ground clearance.
