2017 Honda Pioneer 700-4
2017 Honda Pioneer 700-4

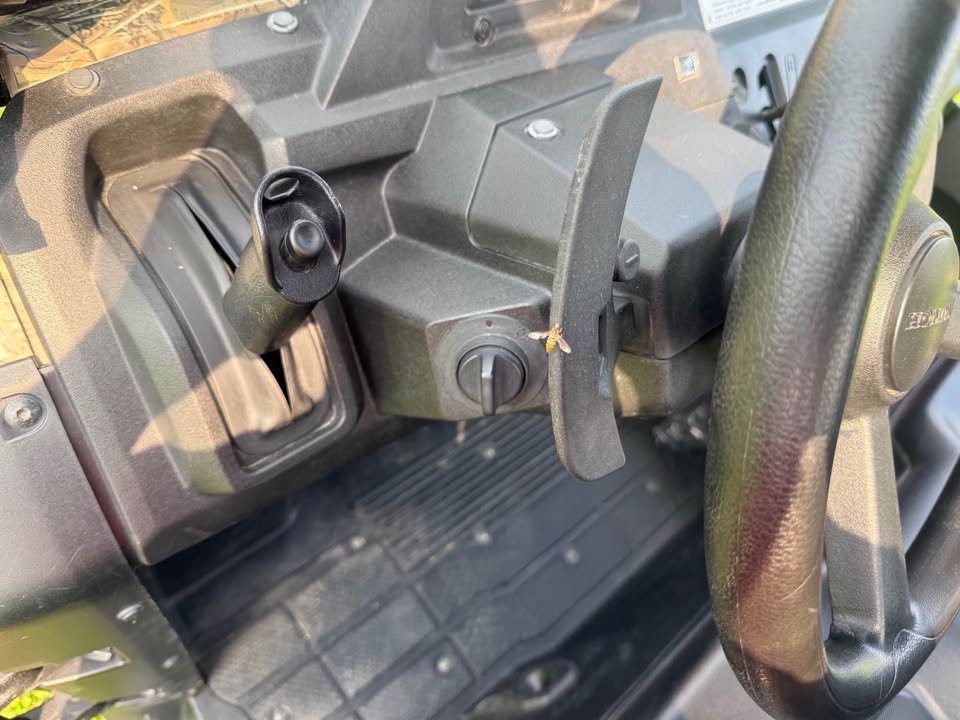

Don’t miss out on this One owner 2017 Honda 700-4 UTV!! Very low mileage at 2429 miles/ 440 hours!! Back seats flip down for bed. Has the paddle shifters on dash. Runs and drives great! Always stored inside and came from our neighbor one mile up the road. W/ title. 9899 plus sales tax unless exempt.
2017 Honda Pioneer 700-4 Specifications
The 2017 Honda Pioneer 700-4 is a versatile four-passenger utility UTV featuring Honda’s QuickFlip® convertible rear seating, a 675cc fuel-injected engine, and an automotive-style automatic transmission. Unlike many UTVs, it uses a geared transmission rather than a belt-driven CVT.
Engine
- Engine: 675cc liquid-cooled single-cylinder 4-stroke
- Displacement: 675 cc
- Fuel System: PGM-FI Electronic Fuel Injection
- Cooling: Liquid-cooled
- Bore × Stroke: 102.0 × 82.6 mm
- Compression Ratio: 9.2:1
- Starting System: Electric
Transmission & Drivetrain
- Automotive-style 3-speed automatic transmission
- Hydraulic torque converter
- No CVT drive belt
- Selectable 2WD / 4WD / 4WD with differential lock
- Direct front and rear driveshafts
- Deluxe models add AT/MT modes and paddle shifters
The 2017 Deluxe version also included Electric Power Steering (EPS), while equipment can vary by trim.
Dimensions & Capacities
| Specification | Value |
|---|---|
| Overall Length | 114.8 in. |
| Overall Width | 60.0 in. |
| Overall Height | 78.3 in. |
| Wheelbase | 76.8 in. |
| Ground Clearance | 10.5 in. |
| Turning Radius | 14.8 ft. |
| Seating Capacity | Up to 4 |
| Fuel Capacity | 8.2 gal. |
| Cargo Bed Capacity | 1,000 lbs. |
| Towing Capacity | 1,500 lbs. |
Suspension & Tires
- Front Suspension: Independent double-wishbone
- Rear Suspension: Independent double-wishbone
- Front Travel: 7.9 in.
- Rear Travel: 9.1 in.
- Front Tires: 25 × 8-12
- Rear Tires: 25 × 10-12
- Hydraulic disc brakes
QuickFlip® Seating
One of the Pioneer 700-4's biggest features is its convertible cargo bed. The two rear seats can be individually folded into the bed, allowing the machine to operate as:
- 2 passenger with full cargo bed
- 3 passenger with one rear seat raised
- 4 passenger with both rear seats raised
Honda continues to use the QuickFlip concept on the Pioneer 700-4 because it allows the machine to switch between passenger and cargo duty without removing seats.
Quick Specs
675cc EFI • 3-Speed Automatic • 2WD/4WD/Diff Lock • Up to 4 Passengers • 1,000-lb Bed Capacity • 1,500-lb Towing Capacity • 8.2-gal Fuel Tank • 10.5" Ground Clearance
The 2017 Honda Pioneer 700-4 is a solid farm, hunting, and property-maintenance UTV, especially for buyers who want four-passenger capability without giving up a usable dump bed.
